Floor plates
FritsJurgens offers various floor plates to match the pivot hinge of your choice and the design of your pivot door. Take a look at the different options in shape and material for each FritsJurgens pivot hinge system.
Floor plates for System M/M+

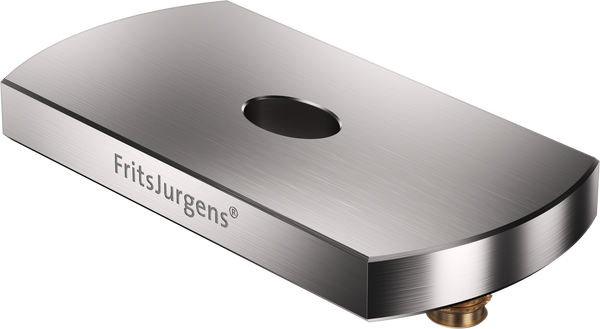

Floor plate squared
Stainless steel
System M
System M+
- Scratch-resistant thanks to the high-quality material
- Two or four 8 mm pins for optimal stability between two floor types
- Available in two colors
- Low-profile and sleek design
- Size (MM)
- 80 x 40 x 9 mm
- Size (Inch)
- 3.15 x 1.57 x 0.35 inch
- Material
- Stainless Steel
- Art.nr.
- FP.M.X.X.S.SS
PVD Black
- Scratch-resistant thanks to the high-quality material
- Two or four 8 mm pins for optimal stability between two floor types
- Available in two colors
- Low-profile and sleek design
- Size (MM)
- 80 x 40 x 9 mm
- Size (Inch)
- 3.15 x 1.57 x 0.35 inch
- Material
- PVD black
- Art.nr.
- FP.M.X.X.S.BK
- 2D drawing DWG File , 233.56 KB
- 3D drawing STEP File , 5.72 MB
Floor plate round
Stainless steel
- Scratch-resistant thanks to the high-quality material
- Four 8 mm pins
- Available in two colors
- Low-profile and sleek design
- Size (MM)
- Ø80 x 9 mm
- Size (Inch)
- Ø3.15 x 0.35 inch
- Material
- Stainless steel
- Art.nr.
- FP.M.X.X.R.SS
PVD Black
- Scratch-resistant thanks to the high-quality material
- Four 8 mm pins
- Available in two colors
- Low-profile and sleek design
- Size (MM)
- Ø80 x 9 mm
- Size (Inch)
- Ø3.15 x 0.35 inch
- Material
- PVD black
- Art.nr.
- FP.M.X.X.R.BK
- 2D drawing DWG File , 259.44 KB
- 3D drawing STEP File , 6.04 MB
Floor plate Flush squared
Stainless steel
- Special square design for integration into the floor or threshold
- Flush with the floor or threshold
- Suitable for exterior pivot doors with System M+
- Suitable for interior pivot doors with System M and System M+
- Electropolished for an extremely corrosion-resistant and weatherproof surface
- Four 8 mm pins
- Only 7 mm of space underneath the door
- Low profile and sleek design
- Size (MM)
- 80 x 40 x 11 mm
- Material
- Hardened Stainless Steel
- Art.nr.
- FP.M.X.X.FS.SS
- 3D drawing File ,
- 2D drawing exterior situation DWG File , 244.53 KB
- Milling manual & Technical drawing PDF File , 1.36 MB
Floor plate Flush rounded
Stainless steel
- Special rounded design for integration into the floor or threshold
- Flush with the floor or threshold
- Suitable for exterior pivot doors with System M+
- Suitable for interior pivot doors with System M and System M+
- Electropolished for an extremely corrosion-resistant and weatherproof surface
- Four 8 mm pins
- Only 7 mm of space underneath the door
- Low profile and sleek design
- Size (MM)
- 80 x 40 x 11 mm
- Material
- Hardened Stainless Steel
- Art.nr.
- FP.M.X.X.FR.SS
- 3D drawing STEP File , 4.66 MB
- 2D drawing exterior situation DWG File , 244.53 KB
- Milling manual & Technical drawing PDF File , 1.36 MB
8 millimeters, 0 worries
Radiant heating is no longer an issue for pivot doors. Radiant heating is usually installed 5 cm under the floor’s surface, leaving plenty of space for mounting the FritsJurgens floor plates.
Floor plates for System One
Floor plate squared NA (non-adjustable)
Stainless steel
Suitable for:
System One
- Scratch-resistant thanks to the high-quality material
- Two or four 8 mm pins for optimal stability between two floor types
- Available in two colors
- Low-profile and sleek design
- Size (MM)
- 80 x 40 x 9 mm
- Size (Inch)
- 3.15 x 1.57 x 0.35 inch
- Material
- Stainless Steel
- Art.nr.
- FP.M.X.X.SN.SS
- 3D drawing STEP File , 4.03 MB
Floor plate round
Stainless steel
Suitable for:
- Scratch-resistant thanks to the high-quality material
- Four 8 mm pins
- Available in two colors
- Low-profile and sleek design
- Size (MM)
- Ø80 x 9 mm
- Size (Inch)
- Ø3.15 x 0.35 inch
- Material
- Stainless steel
- Art.nr.
- FP.M.X.X.R.SS
PVD Black
Suitable for:
- Scratch-resistant thanks to the high-quality material
- Four 8 mm pins
- Available in two colors
- Low-profile and sleek design
- Size (MM)
- Ø80 x 9 mm
- Size (Inch)
- Ø3.15 x 0.35 inch
- Material
- PVD black
- Art.nr.
- FP.M.X.X.R.BK
- 3D drawing STEP File , 6.04 MB
Floor plate Flush squared
Stainless steel
Suitable for:
- Special square design for integration into the floor or threshold
- Flush with the floor or threshold
- Suitable for exterior pivot doors with System M+
- Suitable for interior pivot doors with System M and System M+
- Electropolished for an extremely corrosion-resistant and weatherproof surface
- Four 8 mm pins
- Only 7 mm of space underneath the door
- Low profile and sleek design
- Size (MM)
- 80 x 40 x 11 mm
- Material
- Hardened Stainless Steel
- Art.nr.
- FP.M.X.X.FS.SS
- 3D drawing File ,
- 2D drawing exterior situation DWG File , 244.53 KB
- Milling manual & Technical drawing PDF File , 1.36 MB
Floor plate Flush rounded
Stainless steel
Suitable for:
- Special rounded design for integration into the floor or threshold
- Flush with the floor or threshold
- Suitable for exterior pivot doors with System M+
- Suitable for interior pivot doors with System M and System M+
- Electropolished for an extremely corrosion-resistant and weatherproof surface
- Four 8 mm pins
- Only 7 mm of space underneath the door
- Low profile and sleek design
- Size (MM)
- 80 x 40 x 11 mm
- Material
- Hardened Stainless Steel
- Art.nr.
- FP.M.X.X.FR.SS
- 3D drawing STEP File , 4.66 MB
- 2D drawing exterior situation DWG File , 244.53 KB
- Milling manual & Technical drawing PDF File , 1.36 MB
Mount the floor plate
FritsJurgens floor plates can be placed on a single floor type, but on two different floor types as well. When mounting the floor plate, the drilling mall is used to determine the placement of the 8 mm spindles on the bottom of the floor plate.
Floor plates for System 3
Floor plate squared
Stainless steel
Suitable for:
System 3
- Scratch-resistant thanks to the high-quality material
- Two 8 mm pins
- Low-profile and sleek design
- Suitable for interior and exterior pivot doors
- Size (MM)
- 80 x 40 x 6 mm
- Size (Inch)
- 3.15 x 1.57 x 0.24 inch
- Material
- Stainless Steel
- Art.nr.
- FP.S13.X.X.S.SS
Floor plate round
Stainless steel
Suitable for:
- Scratch-resistant thanks to the high-quality material
- Three 8 mm pins
- Low-profile and sleek design
- Suitable for interior and exterior pivot doors
- Size (MM)
- Ø80 x 6 mm
- Size (Inch)
- Ø3.15 x 0.24 inch
- Material
- Stainless Steel
- Art.nr.
- FP.S13.X.X.R.SS
A flush look on interior floors
Floor plate Flush can be milled into the floor in indoor situations, even when there is no threshold. This means that the floor plate is level with the floor. This not only gives a clean result, but it also ensures that the space under the door is only 7 mm. This again contributes to a sleek, neat look in the interior.
Weatherproof thanks to unique curing procedure
The exterior floor plates are electropolished. Under the influence of electricity and chemicals, the contamination on the surface of the product is dissolved. A new, homogeneous chromium oxide skin is formed that is much thicker than the original skin. Electropolishing provides an extremely corrosion-resistant surface that cannot be obtained with any other surface treatment. This also makes the product surface easier to clean, and the corrosion resistance is extremely high.
Special design for drop seals
Thanks to two versions of the floor plate —one with round corners and one with square corners — floor plate Flush can easily be integrated into the threshold. The choice for either one of these floor plates depends on how the floor plate will be integrated into the threshold.
The floor plate is flush with the threshold and doesn’t take up any more space than necessary, leaving only 7 mm of space under the door. This gives a sleek
