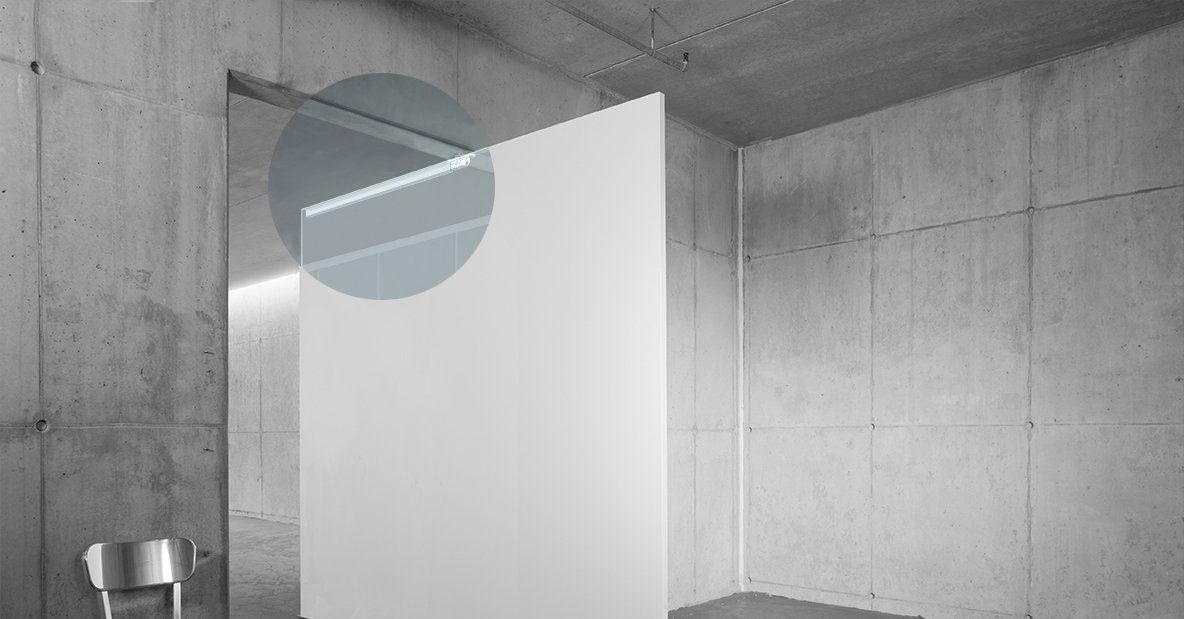

Hexagon FritsJurgens.

Hexagon Guide: easy access to top pivot

EASY ACCESS AND STABILITY OF THE TOP PIVOT

FritsJurgens offers the Hexagon Guide to ease the installation of the top pivot in case the pivot point is more than 280 mm from the side of the door.

The Hexagon Guide contains preset holes, through which gaps around the door can be easily adjusted using the Hexagon key. The Hexagon Guide will offer you easy access and stability of the top pivot.

Applicable for the following systems:

SYSTEM M SYSTEM 3 SYSTEM ONE

Hexagon Guide FritsJurgens
Close

EASY ACCESS TO TOP PIVOT

EASY ACCESS TO TOP PIVOT

Downloads

Milling & Mounting Manual M/M+
PDF File, 3.78 MB
Milling & Mounting Manual System One (new)
PDF File, 4.58 MB
Milling & mounting manual System One (previous model)/3
PDF File, 2.68 MB
Mounting Manual
PDF File, 347.97 KB
Technical Details (DWG)
DWG File, 181.03 KB
Technical Documentation
PDF File, 264.92 KB
